Friction Vs Normal Force Graph is an essential concept in understanding the relationship between two forces that act upon the objects resting on a surface. In physics, friction is the force that opposes motion, while normal force is the perpendicular force exerted by a surface on an object in contact with it. By analyzing the graph of these two forces, we can determine the behavior of an object on a surface.
Explaining Friction Vs Normal Force Graph

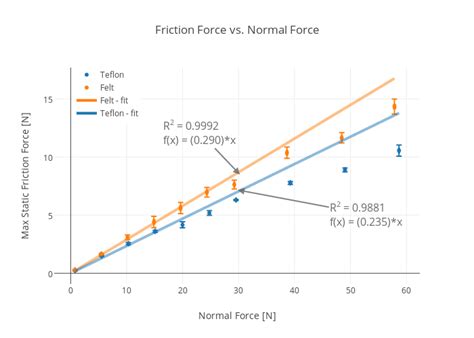

The Friction Vs Normal Force Graph is a plot of the frictional force exerted on an object versus the normal force acting on the same object. The graph is created by varying the normal force and measuring the corresponding frictional force. The relationship between friction and normal force is linear only up to a certain point, after which it becomes constant. This point is known as the maximum static friction, and the constant value is known as the kinetic friction.
Related Problems and Solutions
One common problem related to friction and normal force is determining the maximum static friction required to move an object. To solve this, we use the equation f = μsN, where f is the maximum static frictional force, μs is the coefficient of static friction, and N is the normal force.
Another problem is determining the acceleration of an object on a surface. To solve this, we use the equation a = (F – friction) / m, where F is the force applied, friction is the kinetic frictional force, and m is the mass of the object.
FAQs
What is the relationship between friction and normal force?
The frictional force is directly proportional to the normal force. As the normal force increases, so does the frictional force. However, there is a limit to the frictional force, beyond which it remains constant and independent of the normal force.
What is the difference between static and kinetic friction?
Static friction is the frictional force that opposes motion when an object is at rest, while kinetic friction is the frictional force that opposes motion when an object is in motion.
What factors affect the coefficient of friction?
The coefficient of friction depends on the nature of the surfaces in contact, the roughness of the surfaces, and the presence of any lubricants or contaminants.
Tips
- Keep the surfaces clean and dry to reduce the coefficient of friction.
- Use lubricants to reduce the frictional force.
- Use materials with low coefficients of friction for sliding surfaces.
Conclusion
The Friction Vs Normal Force Graph is a useful tool in analyzing the behavior of objects on surfaces. By understanding the relationship between friction and normal force, we can determine the maximum static friction required to move an object and the acceleration of an object on a surface. By following the tips discussed, we can reduce the frictional force and improve the performance of objects on surfaces.
